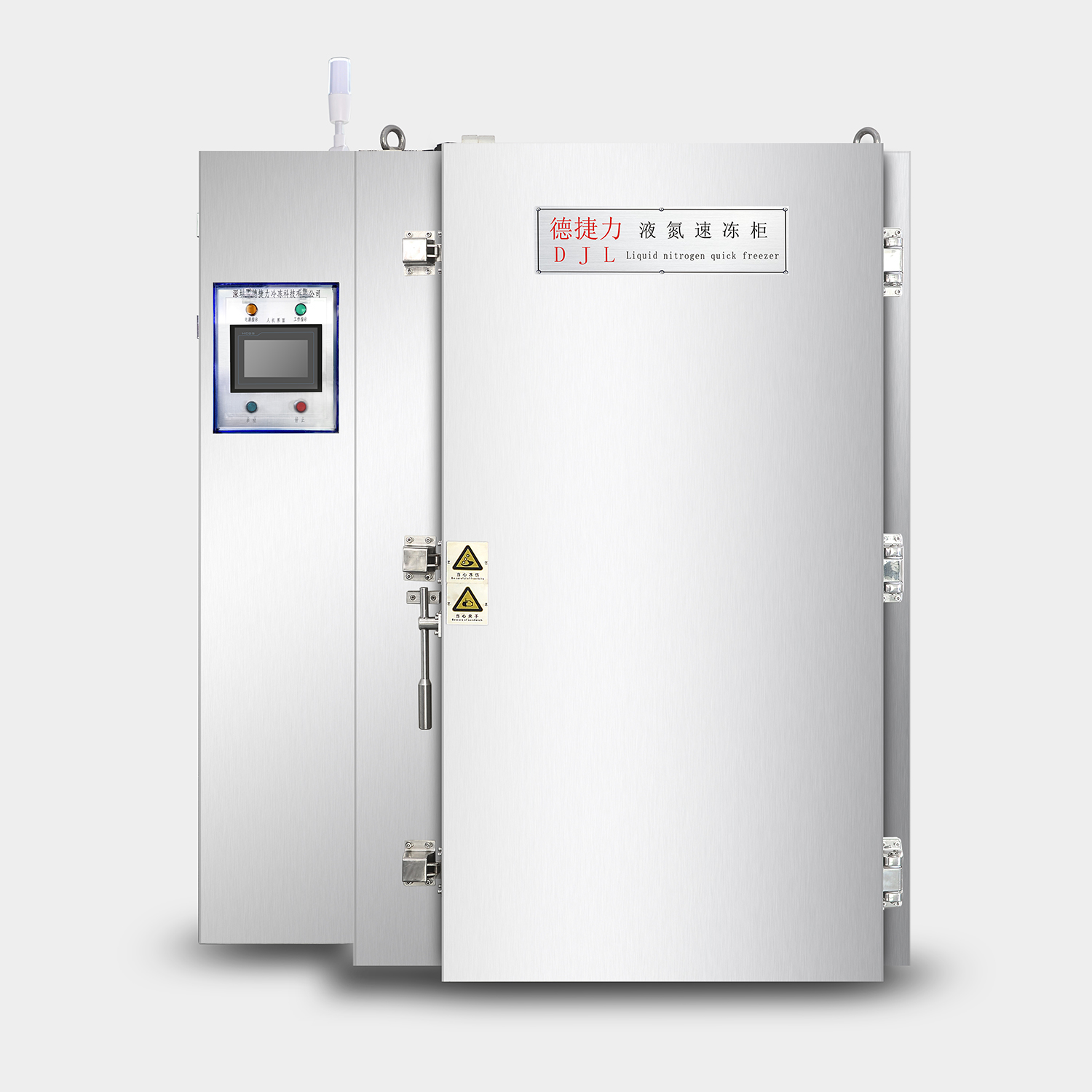

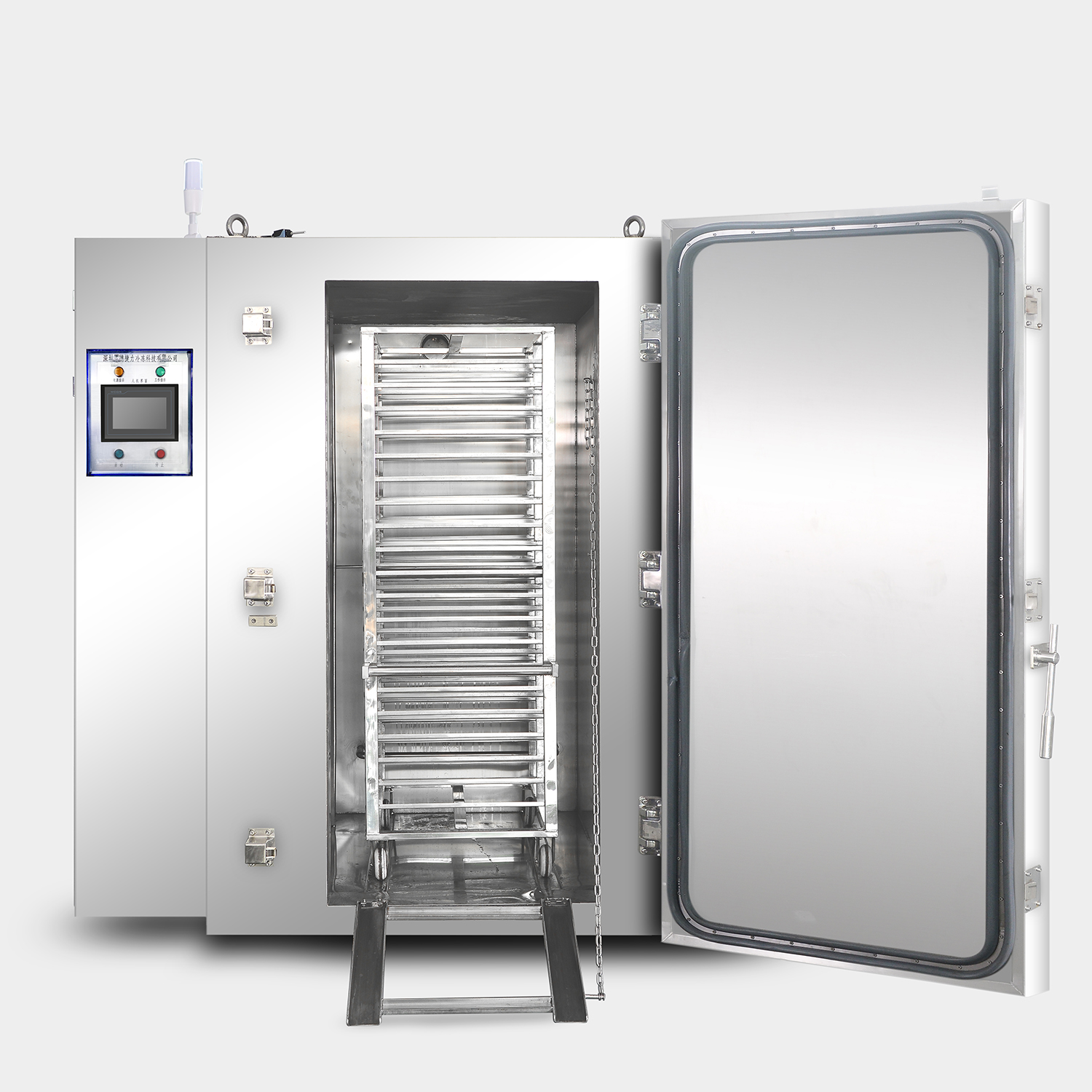

0934731680Detailed Introduction to Liquid Nitrogen Quick-Freezing Cabinet
1. Design Concept and Principles
DJL liquid nitrogen quick-freezing equipment adheres to the internationally advanced HACCP design concept and upholds the design principles of "Safety First, Comprehensive Functions, Easy Maintenance, User-Friendly Operation", committed to providing food processing enterprises with high-performance quick-freezing equipment.
2. Component Modules
The DJL series liquid nitrogen quick-freezing cabinet consists of a stainless steel body module, a liquid nitrogen quick-freezing refrigeration module, an electrical control module, a cart, etc.
3. Process Performance Data of DJL Series Liquid Nitrogen Quick-Freezing Cabinet
No. | Performance Indicator | Parameter |
1 | Liquid Nitrogen Quick-Freezing Temperature | Minimum -196℃, Commonly Used -120℃ |
2 | Liquid Nitrogen Quick-Freezing Time | 1-30 minutes, Adjustable on Demand |
3 | Liquid Nitrogen Quick-Freezing Cost | 300-800 RMB/ton |
4 | Body Material | 304 Stainless Steel |
5 | Insulation Layer | 150MM Thick Polyurethane |
6 | Power Specification | 380V 50HZ |
7 | Refrigerant | Liquid Nitrogen, 5-8 kg Pressure |
Liquid Nitrogen Quick-Freezing Cabinet Specification and Capacity Comparison Table
Model | Inner Cavity Dimensions WDH | Outer Dimensions WDH | Power (kw) | Freezing Capacity (kg/h) |
DJL-QF-50A | 700900700 | 155013002000 | 1 | 50 |
DJL-QF-100A | 7009001400 | 155013002000 | 1.5 | 100 |
DJL-QF-150A | 7009001800 | 155013502300 | 1.5 | 150 |
DJL-QF-300A | 90013201800 | 175017502300 | 2.5 | 300 |
DJL-QF-600A | 90011001800 | 270020002300 | 3.5 | 600 |
DJL-QF-1200A | 117015001800 | 380020002300 | 7 | 1200 |
DJL-QF-2000A | 135014501800 | 592022002580 | 10 | 1500 |
DJL-QF-3000A | 135017001800 | 592024202580 | 10 | 2000 |
Note:
In actual production, the capacity of the liquid nitrogen quick-freezer may vary due to differences in product specifications and packaging. For objective and accurate data, please consult the liquid nitrogen quick-freezing equipment manufacturer.
Dejieli can customize various special liquid nitrogen quick-freezing equipment, liquid nitrogen quick-freezing tunnels, liquid nitrogen quick-freezing cabinets, and liquid nitrogen quick-freezers according to customer requirements.
